Coaxial Cable Manufacturers

Coaxial cables support high bandwidth signal transmission when compared with twisted pair. These cables are easy to wire and expand easily because of its flexibility. Coming with better shielding materials, they allow high transfer rates and sufficient frequency range to support multiple channels.
We are one of the prominent coaxial cable manufacturers, Coaxial Cables Wholesalers, Coaxial Cables Suppliers, and Coaxial Cables Exporters. We manufacture and supply a range of coaxial cables. We design these cables with an aim to comply with the industry defined norms of quality. Moreover, our coaxial cables are reasonably priced.

When purchasing coaxial cables, keep the following parameter in mind, including:

  • The diameter of the inner conductor(mm.)
  • Diameter over dielectric(mm.)
  • Nominal overall diameter(mm.)
  • DCR at 20°C (Nominal) (Ohm/km)
  • Nominal capacitance (pF/M)
  • Nominal impedance(ohm)

  • At Weldon Cables, we are committed to bringing forth a perfect option for the transmitting line, which is widely required by the diverse industries. We fully test all coaxial cables on all parameters with a view to make it the preferred choice for a variety of use in CCTV networks by private and public operators. Besides, we manufacture coaxial cables as per national international standards or customer specifications.

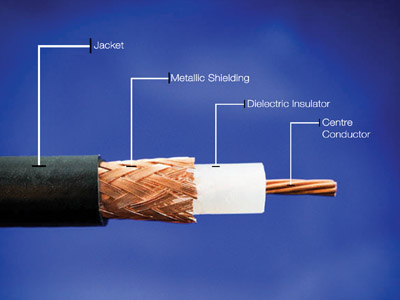

    About Coaxial Cables

    Coaxial cables are like copper cables. They are majorly used by cable television companies between user homes, businesses, and the community antenna. Telephone companies also use coaxial cables from their regional office. These cables are also installed in commercial Ethernet and other local area networking. They can transmit any information for a long distance. Moreover, coaxial cables are used when it comes to the radio transmission lines for frequency signals to connect the radio transmitters and receivers with their antennas, internet connections, and connectin cable signals.

    For more information about our coaxial cables or placing orders, initiate contact with us. As a coaxial cable manufacturer in India, we always strive to serve our customers better.

    Specifications: As per National International standard or as per customer specification.

    Range: RG 6, RG 8, RG 11 (JELLY), CCTV ( 1+3 ) - ( 1+ 4 ) ,CAT 5E

    PARAMETER RG-6 RG-11 RG-59
    Diameter of inner conductor(mm.) 1.02 1.63 0.8
    Diameter over dielectric(mm.) 4.60 7.24 3.66
    Nominal overall diameter(mm.) 6.90 10.30 6.00
    DCR at 20°C (Nominal) (Ohm/km) 22.00 8.5 35.5
    Nominal capacitance (pF/M) 53.1 53.1 53.1
    Nominal impedance(ohm) 75 75 75
    ATTENUATION (NOMINAL) AT 20°C (db/100Mtrs.)
    55 Mhz. 4.66 2.91 6.02
    211 Mhz. 9.16 5.71 11.83
    300 Mhz. 40.98 6.86 14.19
    350 Mhz 11.90 7.47 15.38
    400 Mhz. 12.77 8.01 16.47
    450 Mhz. 13.55 8.52 17.47
    500 Mhz. 14.29 8.99 18.45
    550 Mhz. 15.00 9.46 19.36
    600 Mhz. 15.68 9.90 20.24


    For Transmission of Audio and Video Signals and in CCTV Systems.
