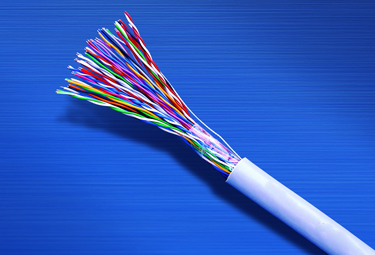

Telecommunication Cable Manufacturers
Weldon Cables manufacture an extreme range of telecommunication cables. These cables cover several applications, including signal transmission, voice data transmission using different media channels like coaxial conductors, fibre optic, copper conductors, and twisted pairs.
As one of the telecommunication cable manufacturers and specialists, we ensure a quick supply of the best quality of telecommunication cables. Our cables are optimum solutions for various applications, such as mobile networks, data centers, industrial and railway telecommunication systems where reliability and speed are often safety-critical importance. These cables are generally used for transmitting electric energy (AC/DC) and transmitting electromagnetic waves.
Features of Telecommunication Cable
Conductor
Annealed High Conductivity
Uniform coated with Tin
Electrolytic Grade Solid Conductor
Diameter O.5mm, 0.6mm & O.7mm
Layers in the cables contain 63 wires
Can be stranded with a suitable left band lay
Cables are wrapped with Polyester tape
Tightly fitted of the overall diameter
Covered with PVC Compound as per Type TM2 of IS:13176:1991 of Grey color
Annealed bare/tinned high conductivity copper.
One of the prominent names among telecommunication cable manufacturers, our engineers formulate telecommunication cables in a high grade of PVC Compound as per IS 13176: 1991. High grade & capable. So, the cables can withstand high conductor temperature up to 70° C.
The telecommunication cables designed by Weldon Cables are an optimum option when it comes to conducting a number of end-users to a central point, which is known as an “Access Nodes” or “Points of Presence’ (POP). Each access node comes with the essential electronic transmission equipment for providing the applications and services to the subscriber.
To know more about the telecommunication cables manufactured by Weldon Cables, feel free to contact us. We will be more than happy to serve you.
| Area Sq. | 0.5 MM 92.2 OHM/KM (MAX) AT 20 oC 0.20 + 0.05 - 0.02MM G/WIR - 06/02 |
0.6 mm (Nominal) 64.00 OHM/KM(MAX.) AT 20 oC 0.20+0.05-0.02MM G/WIR-06/02 |
0.7 mm (Nominal) 45.70 OHM/KM(MAX.) AT 20 oC 0.28+0.05-0.02MM G/WIR-06/02 |
|||
|---|---|---|---|---|---|---|
| SHEATH THICKNESS | MAX.O.D.(MM) | SHEATH THICKNESS | MAX.O.D.(MM) | SHEATH THICKNESS | MAX.O.D.(MM) | |
| PAIR | ||||||
| 1 | 0.50 | 3.50 | 0.50 | 3.50 | 0.65 | 4.30 |
| 2 | 0.60 | 5.30 | 0.65 | 5.50 | 0.65 | 6.50 |
| 3 | 0.65 | 5.60 | 0.65 | 6.80 | 0.65 | 7.00 |
| 4 | 0.65 | 6.10 | 0.65 | 7.20 | 0.65 | 8.00 |
| 5 | 0.65 | 6.60 | 0.65 | 7.60 | 0.65 | 8.80 |
| 10 | 0.75 | 9.00 | 0.75 | 10.00 | 0.65 | 10.80 |
| 14 | 0.75 | 10.50 | 0.75 | 10.80 | 0.65 | 12.50 |
| 20 | 0.75 | 11.50 | 0.75 | 12.00 | 0.90 | 14.00 |
| 30 | 0.75 | 12.70 | 0.75 | 14.20 | 0.90 | 16.00 |
| 51 | 1.10 | 16.20 | 1.10 | 18.50 | 1.10 | 17.80 |
| 102 | 1.40 | 23.00 | 1.40 | 24.40 | 1.80 | 26.50 |
